0.85KW 200000 RPM Precision CNC Router Spindle Dynamic Run Out

PRODUCT DESCRIPTION

MODEL : KL200B

REPLACE FOR : H920B

SPEED RANGE : 20,000 - 200,000 rpm

BEARING TYPE : Air bearing

SPINDLE WEIGHT : 3.5kg

COLLET SIZE : Ø1/8”

BODY SIZE : Ø 61.9

Air Pressure : 6.0 kgf/cm²

Max power : 0.85KW

Coolant : Water oil

Coolant water temperature : 20+2

Fixed voltage : 200V

Fixed current : 3A

Static Runout : <2µm

Dynamic Runout : <7µm

Max axial load : 200N

Vibration : 0.8MM/S

Temperature sensor ohms KΩ : R=10±3% AT 25℃

Competitive Advantage :

LOW STATIC

LOW DYNAMIC RUN OUT

STABLE CHARACTER AND LONG LIFE

SUITABLE FOR PRECISION DRILLING

APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLING

HOLE RANGE : Ø6.35mm-0.05mm

MACHINE REFERENCE : KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….

Quick Detail :

SPECIFICATION:

Why choose KLKJ?

With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.

All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character :

1. Air flow
2. Water flow
3. End float/lift off
4. Axial load (inner)
5. Axial load (outer)
6. Torque

7. Static RUNOUT

8. Dynamic RUNOUT

9. Motor check

10. Vibration

11. Material analysis & strictly quality test detection control

12. Stringent tolerance control

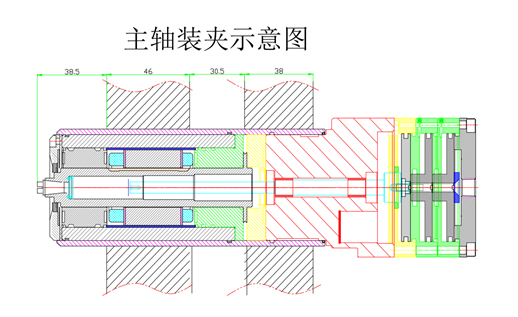

Spindle drawing

SPINDLE SKETCH

CUSTOMER COMMENT

YUEYANG XIANLONG MOTOR CO., LTD, the former name is KLKJ Group Co.,Ltd., is a national enterprise that integrates research manufacturing , sale and service of high frequency Spindles, which focus on PCB drilling and routing machine, wood machinery, high precision CNC grinding machine... ect.

After years business development, KLKJ has set up multi production lines and systematized management. Now, Xianlong has more than 300 skillful technicians and 100 sets CNC machinery high precision equipments, with strong technical capacity, complete service system and selling channel. We have already obtained dozens of national invention patents and utility model patents. Xianlong also cooperates with many well-known universities in smart manufacturing, research and development to improve the enterprise over-all strength. Meanwhile, Xianlong Motor actively recruits good talents in technic and management worldwide and purchases advanced manufacturing equipments and test instruments, which lays a solid foundation for the enterprise long term development.
