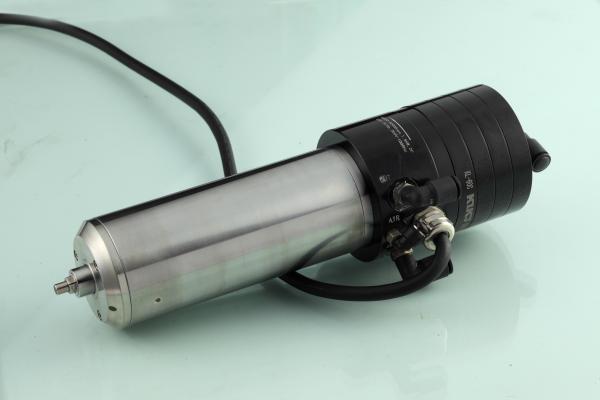

1.2 KW 60000 Rpm Ball Bearing Spindle , PCB Router Spindle Water / Oil Cooled
PRODUCT DESCRIPTION
Item No.: KL-60C-4
Product Name : PCB routing spindle
Speed scope :10,000 - 60,000 rpm
Bearing : Ball bearing
Weight : 4.6kg (W/ packing)
Collet type : ø3.175—ø6
Air Pressure:≥6 kgf/cm²
Power : 1.2KW-1.5KW
Coolant type : Oil or water
Coolant water temperature: 20℃+2
Voltage range : 33-182 V
MAX. CURRENT (A): 5A
Dynamic Runout:≤10
Static Runout: 2.0
Vibration:1.0MM/S
Temperature sensor ohms KΩ: R=10±3% AT 25℃
TORQUE(g): ø3.175≥800g ø6≥1500g
Competitive Advantage:
Low Dynamic runout
Low static runout
Long life and stable
Material machining : PCB, Al, plastic graphite, acrylic and glass
APPLICATION :
1, Routing non-regular PCB shape or PCB hole drilling
2, Machine matching : KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
2, Griding for optic eyeglasses lens
3, Article teeth model machining
Quick Detail:
Item No. | Product Name | Description | Application | Machine reference | Bearing type |
KL-60C-1 | SPINDLE | RPM Scope : 10,000- 60,000 High precision routing and drilling | Non-regular PCB shape routing | TALIANG; LISONG | Ball Bearing |
Detail Specification :
Range of speed (RPM) | 10,000-60,000 |
Scope of frequency (HZ) | 167-1000 |
Motor poles | 3 |
Power range | 1.2KW-1.5KW |
Torque (N.cm) | ø3.175≥210 ø6≥382 |
Range of voltage (V) | 33-182 |
Diameter of collet (mm, optional) | ø3.175—ø6 |
Cooling water temperature (°C) | 20+/-2 |
Bearing | Ball bearing |
Air pressure (kg/cm2) | ≥6 |
Runout (μm) | ≤8 |
Vibration (mm/s) | ≤1.0 |
THREE PHASE RESISTANCE (Ω) | 2.2 |
COLLET LOCK TYPE | DEAD COLLET |
SPINDLE WEIGHT (kg) | Around 4.6 |
MAX. CURRENT (A) | < 5 |
GRIP AIR PRESSURE (kg/cm2) | ≥1.5 |
RELEASE AIR PRESSURE (kg/cm2) | ≤4.5 |

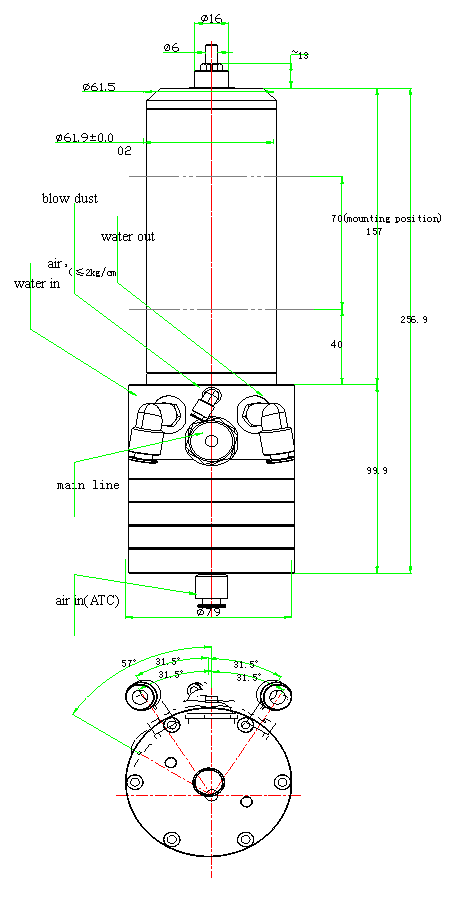

Spindle Out Shape Drawing
