Compatible WWD1686 180,000RPM KL180B High Speed Air Spindle PCB
PRECISION DRILLING
Quick Detail:
MODEL | REPLACE FOR | DESCRIPTION | Precision | Machine reference |
KL180B | D1686-10 D1686-XX | SPEED RANGE : 20,000 - 180,000 rpm Ø6.35mm - 0.05mm precision PCB drilling | Static Runout : <1µm Dynamic Runout : <7µm Vibration : 1.0MM/S | KLINGINBERG PLURITEC HITACHI LENZ ANDERSON …. |
PRODUCT DESCRIPTION
KL180B industry standard body style and tool holding system spindle
replace for WW D1686-10; D1686-XX Full Range from 20,000 to 180,000
rpm, air bearing type in long life, spindle weight 3.6kg with
Diameter tool 3.175mm and body size Ø 61.9,Max power 0.75KW, Collet
torque(N.cm) >=120.
The Parameter of KL180B :
Air Pressure : 6.0 kgf/cm²
Coolant : Water oil
Fixed voltage : 210V
Fixed current : 4A
FREQUENCY (HZ) : 334-3075
Competitive Advantage :
Low Static
Low Dynamic RUN OUT
Stable character and long life
Power and very low heat generation
Good slot and big hole drilling
Less running costs
ATC feeder / ATC tool change for micromachining
Environment friendly
KLKJ Advantage
The higher spindle speeds available allow for increased
productivity whilst ensuring that accuracy and repeatability is
maintained.
Advanced analysis and detailed design has created a spindle with
exceptional reliability and increased efficiency.
KLKJ increased productivity and efficiency available allows mass
production drilling and routing spindle.
APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLER
2 HEAD OR 4 -6 HEAD DRILLER
HOLE RANGE : Ø6.35mm-0.05mm
MACHINE REFERENCE : SCHMOLL POSALUX KLG PLURITEC KLINGEINBERG LENZ
EXCELLON HITACHI
SPECIFICATION:
Coolant water temperature | 20+2 |
Static runout | <2µm |
Dynamic runout | <8µm |
Collet torque(N.cm) | >=120( 1/8”) |
Vibration | 1.5MM/S |
Temperature sensor ohms KΩ | R=0.10±5% AT 25℃ |
Open air pressure | <4.5 kg/cm² |
Close air pressure | >2.5 kg/cm² |
Coolant water flux | >1.5(L/min) |
Coolant oil flux | >3.0(L/min) |
Air consume flux | 125(L/min) |
Radial load | 6.0kgf |

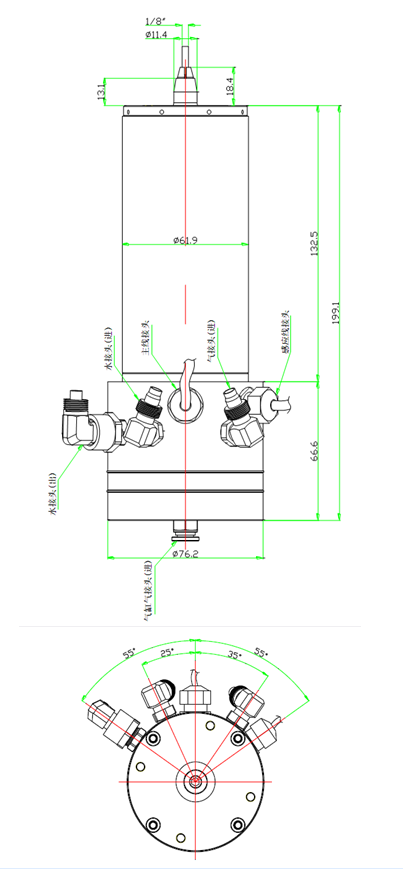

SPINDLE OUTLINE DRAWING
Why choose KLKJ?
With nearly 15 years technology in spindle maintenance, 10 years
success experience for spindles parts production, and 9 years
spindle R&D, KLKJ succeed in offer air bearing spindle up to
200krpm.
All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character :
|
|
