KL60C 60,000RPM CNC Router Spindle Mobile phone Touch Screen Glass outline Grinding
PRODUCT DESCRIPTION
MODEL:KL-60C
NAME :BALL BEARING SPINDLE
SPEED RANGE:10,000 - 60,000 rpm
BEARING TYPE:Ball bearing
SPINDLE WEIGHT:4.6kg
COLLET SIZE:ø6
Air Pressure:≥6 kgf/cm²
Motor power:1.2KW-1.5KW
Coolant:Water oil
Coolant water temperature:20+2
Voltage:33-200V
MAX. CURRENT (A):3A
Dynamic Runout:≤8
Vibration:1.0MM/S
Temperature sensor ohms KΩ: R=10±3% AT 25℃
TORQUE(g): ø6≥1500g
Competitive Advantage:
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR MOBILE TOUCH SCREEN GLASS-PROCESS
WATER -PROOF
APPLICATION
MOBILE TOUCH SCREEN GLASS-PROCESS
Quick Detail:
MODEL | NAME | DESCRIPTION | Application | Machine reference |
KL-60C | BALL BEARING SPINDLE | SPEED RANGE:10,000 - 60,000 rpm High speed precision grinding | MOBILE TOUCH SCREEN GLASS GRINDING | OCEAN ...... |
SPECIFICATION:
SPEED RANGE | 10,000-60,000 |
FREQUENCY (HZ) | 167-1000 |
MOTOR TYPE | THREE PHASE |
MOTOR OUTPUT POWER | 1.2KW-1.5KW |
TORQUE(g) | ø6≥1500g |
VOLTAGE (V) | 33-200 |
COLLET CLAMPING DIAMETER (mm) | ø6 |
COLLING TEMPERATURE(°C) | 20 |
BEARING TYPE | BALL BEARING |
AIR PRESSURE (kg/cm2) | ≥6 |
RUNOUT (μm) | ≤8 |
VIBRATION (mm/s) | ≤1.0 |
THREE PHASE RESISTANCE (Ω) | 2.2 |
COLLET LOCK TYPE | DEAD COLLET |
SPINDLE WEIGHT (kg) | Around 4.6 |
MAX. CURRENT (A) | < 5 |
GRIP AIR PRESSURE (kg/cm2) | ≥1.5 |
RELEASE AIR PRESSURE (kg/cm2) | ≤4.5 |

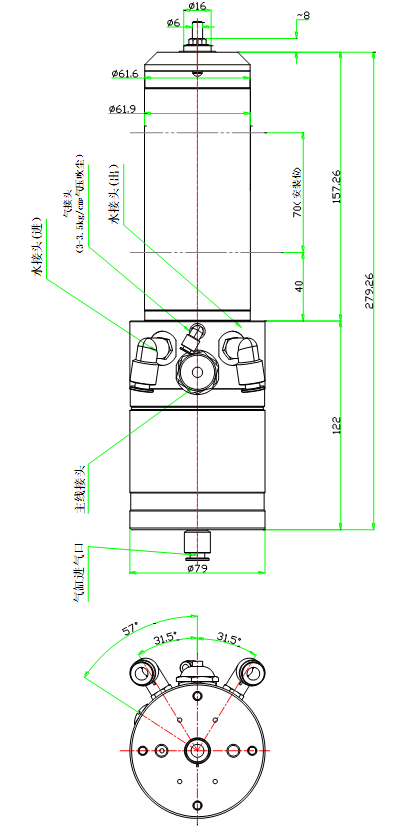

KL-60C Spindle drawing
