Compatible H916C 160,000RPM KLAB160C CNC High Speed Spindle PCB Drilling
Quick Detail:
MODEL | REPLACE FOR | DESCRIPTION | Application | Machine reference |
KLAB160C | H916C | SPEED RANGE:20,000 - 160,000 rpm Ø6.35mm-0.05mm precision drilling | PCB PRECISION DRILLING | KLINGINBERG PLURITEC HITACHI LENZ ANDERSON …. |
PRODUCT DESCRIPTION
MODEL:KLAB160C
REPLACE FOR:H916C
SPEED RANGE:20,000 - 160,000 rpm
BEARING TYPE:Air bearing
SPINDLE WEIGHT:3.2kg
COLLET SIZE:Ø1/8”
BODY SIZE: Ø 61.9
Max power:0.75KW
Coolant:Water oil
Fixed voltage:215V
Fixed current:3A
Static Runout:<2µm
Dynamic Runout:<8µm
Vibration:1.0MM/S
Competitive Advantage:
LOW STATIC
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE
SUITABLE FOR PRECISION DRILLING
APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
SPECIFICATION:
Static runout | <2µm |
Dynamic runout | <8µm |
Collet torque(N.cm) | >=125( 1/8”) |
Vibration | 1.0MM/S |
Collet size | Ø1/8” |
Temperature sensor ohms KΩ | R=10±3% AT 25℃ |
Open air pressure | <4.5 kg/cm² |
Close air presure | >2.5 kg/cm² |
Coolant water flux | >1.4(L/min) |
Coolant oil flux | >2.7(L/min) |
Air consume flux | 45(L/min) |
Radial load | 5.5kgf |
Air Pressure | 6.0 kgf/cm² |

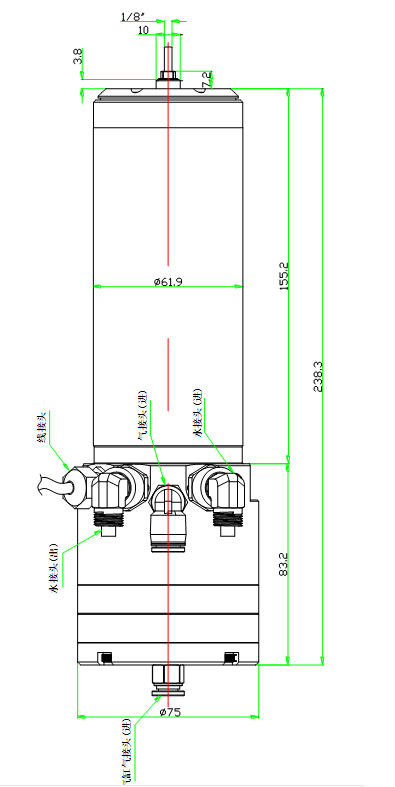

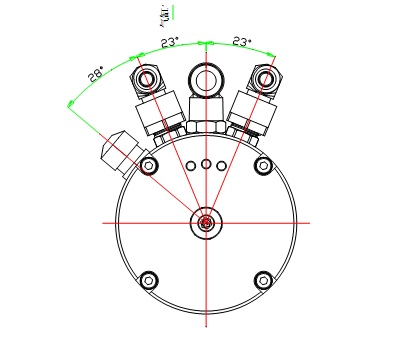

KLAB160C SPINDLE OUTLINE DRAWING
