Compatible ABL H516D WW D1722 160,000RPM KL161D PCB Drilling Spindle


Quick Detail:

PRODUCT DESCRIPTION

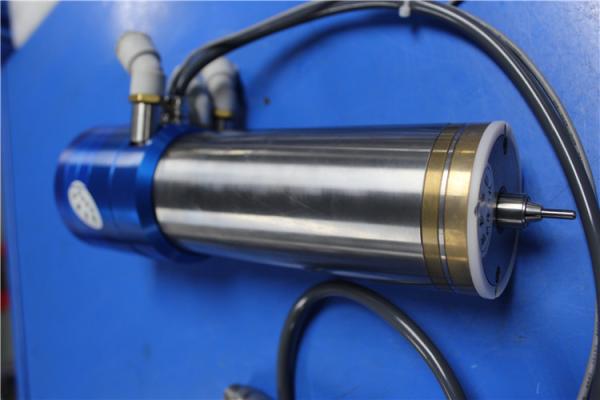

KL161D high frequency spindle replace for ABL H516D or WW D1722 Full Range from 20,000 to 160,000 rpm, air bearing type in long life, spindle weight 4.1kg with COLLET size Ø1/8 and body size Ø 61.9, and FREQUENCY (HZ) is from 334-2760, SENSOR or Without For Choose.

Max power: 0.85KW
Coolant: Water oil
Fixed voltage: 200V
Fixed current: 4A
Static Runout: <2µm
Dynamic Runout: <7µm
Vibration: 1.0MM/S


Competitive Advantage:

Low Static
Low Dynamic RUN OUT
Stable character and long life
Suitable for precision drilling
Air bearing type offer Greater Precision, High Speed , Increased Tool Life, Improved Surface Finish, Long Bearing Life, Low Thermal Growth, Lack of Maintenance, Large Load Capacity , Reduced Vibration , Cleanliness.



APPLICATION :

PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm

MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….


SPECIFICATION:

KL161 SPINDLE OUTLINE DRAWING







Why choose KLKJ?

With nearly 15 years technology in spindle maintenance, 10 years success experience for spindles parts production, and 9 years spindle R&D, KLKJ succeed in offer air bearing spindle up to 200krpm.
All spindles at the KLKJ are fully checked and tested using stringent quality control procedures. KLKJ ensures every repaired spindle passes the following points to make it in long life and stable character:

1. Air flow

2. Water flow

3. End float/lift off

4. Axial load (inner)

5. Axial load (outer)

6. Torque

7. Static RUNOUT

8. Dynamic RUNOUT

9. Motor check

10. Vibration

11. Material analysis & strictly quality test detection control

12. Stringent tolerance control
